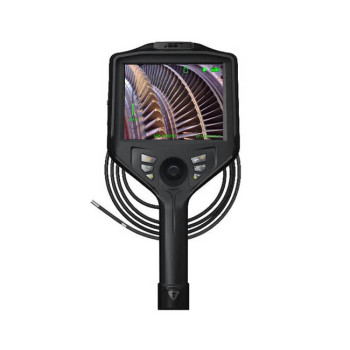

6.0MM T51X Sideview Industrial Endoscope

group name: 6.0MM Borescope

Min Order: 1 carton

brand name: JEET

model: T51X

Nearest port for product export: Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram

update time: Thu, 21 Nov 2024 18:15:54 GMT

contact supplier

Packging & Delivery

Min Order1 carton

Briefing

6.0MM T51X Sideview Endoscope Camera used for inspecting areas and tight spaces that are impossible to visualize without it.

Detailed

Intelligent Software

Strong intelligent image processing system: with the functions of mage rotation, white balance, exposure control, negative film and zoom in & out, comparative measurement, it can meet all kinds of complicated inspection.

White Balance: Auto white balance with strong color reduction;

Manual-control white balance according to inspection needs.

Exposure Setting: exposure suppression--the polished object is also inspected clearly;

Exposure compensation--when checking large cavity, it can be more effective and clearer.

Normal Mode: HD image effect;

Negative Film Mode: Enhance the ability to compare and analyze the internal defects of the inspected objects.

Support 8X zoom in/out

Flexible Articulation Control

360° joystick-control articulation, damping type positioning design, precise probe locking technology, make the detection more accurate and efficient. Independently developed technology of long-distance transmission ensures bending angle≥100°，even the tube reaches 10 meters.

360° precision articulation

Strong Hardware

T51X series videoscope is module designed. Configured with 5.1 inches HD display, it can be interchangeable with 3.5 inches small display, suitable for different inspection requirements. The monitor and probe can be separated by one button. It is compatible with different diameter tubes like: 2.0mm/2.2mm/2.8mm/3.8mm/6mm, as well as 3.8mm&6mm sideview tubes and 6mm dual lens tube.

Parameters

Tube System	Probe Diameter(mm)	Φ6.0
	Camera Pixels	1,000,000
	Image Resolution	1280×720
	Video Resolution	1280×720
	DOF	5mm-50mm
	FOV	120°
	Viewing Direction	90° sideview
	Light Source	Front ceramic light/ Rear-mounted optic fiber cold
	Illuminance	Maximum: 100000+Lx 1~9 levels adjustable light
	Tube Length	1.5m/3.0m/5.0m/30m (customized for other length)
	Protecting Device of Durability	42mm buffer protection device between tube and handle
	Articulation	2-way / 360° joystick-control articulation
	Bending Angle	Maximun:190°
	Probe Positioning	Damping positioning & articulation lock device
	Wi-Fi Transmission	Image transmission to Mobile phone, computer by Wi-Fi(optional)
Monitor System	Display	5.1" color IPS display, all sight viewing angle, sunshade design
	Display Resolution	1280*960
	Zoom In/Out	8X
	Language	English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean
	White Balance Suppression	5 levels adjustable
	White Balance	Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images.
	Image Effect	Negative film/ black & white/standard
	Temperature Indication	High temperature alarm （optional）
	IP Level	Probe/tube: IP67
	Software Function	Playback, image parameters adjust and rotate
	Structure	Hand-held integrated design
	Image/Video Format	JPEG/MOV
	Comparative Measurement	Use measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
	Data Port	HDMI video output, Micro USB port with water &dust proof device
	Working Time	≥8h
	Battery Capacity	3.7V，3200mAh×2
	Power Charge	DC5V, 1A
	Weight	≤0.8Kg
	Compatibility	Interchangeable monitor and tube with different diameters
Accessories	Standard Configuration	Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set
