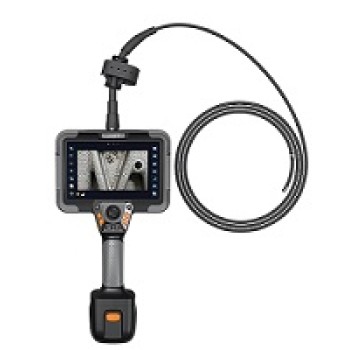

JX Motor-driven 3D Measurement Videoscope
- group name
- JX
- Min Order
- 1 piece
- brand name
- JEET
- model
- JX
- Nearest port for product export
- Shenzhen
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram
- update time
- Thu, 21 Nov 2024 15:29:38 GMT
Paramtents
Diameter 1.0/1.8/2.2/2.8/3.8/6.0/8.0mm
Tube Length 1m~10m
DOF 3-25mm/10-110mm
Articulation 360°all-way
Light Source LED/optic fiber
FOV 90°/120°
Measurement Accuracy ≥95%
Minimum Accuracy 0.01mm
Standard Accuracy 0.1mm
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Intelligent touch screen to restore
real image effect
l 7-inch intelligent touch screen, sensitive touch and accurate operation
l The screen brightness can be adjusted and the image can be clearly seen
l Ultra clear image quality and highly restore the real effect of the image
l Parametric adjustment of image effect to grasp the defect situation at any time
l 4-layer wear-resistant tungsten wire tube, the wear resistance is 20 times than the ordinary tube
l The probe, objective lens and tube system shall be IP67 waterproof
l The shell is made of engineering alloy and aviation aluminum alloy, which is firm and durable
l The products have undergone strict high and low temperature, drop, vibration and other tests
l Select the photo and give a text description of the defect below the picture
l Graffiti notes can directly circle defects and cracks on the drawing
l Watermark annotation, and you can customize "qualified, crack" and other marks
l Generate report, which can be saved in USB flash disk, internal storage or transfered to mobile device via Bluetooth
l The file name can be preset or renamed
l New folders can be created to quickly find files
l Support picture/video preview and graffiti annotation pictures
l Pictures, videos and test reports can be deleted or exported with one click
l Fast global scanning to view 3D physical cloud image
l Vertical depth cloud map, automatic measurement of maximum depth
l 3D cloud image XYZ coordinate display, arbitrary section view, easy to locate the depth and height difference of internal defects
l the datum plane shifts and the depth value changes in real time
One click control,
fast/slow electric rotation, automatic reset
l Modular design, and the host system, tube system and power supply system can be disassembled and separated.
l Independently replace the 1.0mm~8.0mm tube system to meet the needs of different working conditions.
l WiFi wireless connection, and the mobile device synchronously displays the detection image
l Take photos / videos remotely through app and save test pictures
l Error reporting notes
l Real time display of detected ambient temperature
l High temperature alarm function, power off when overheating
